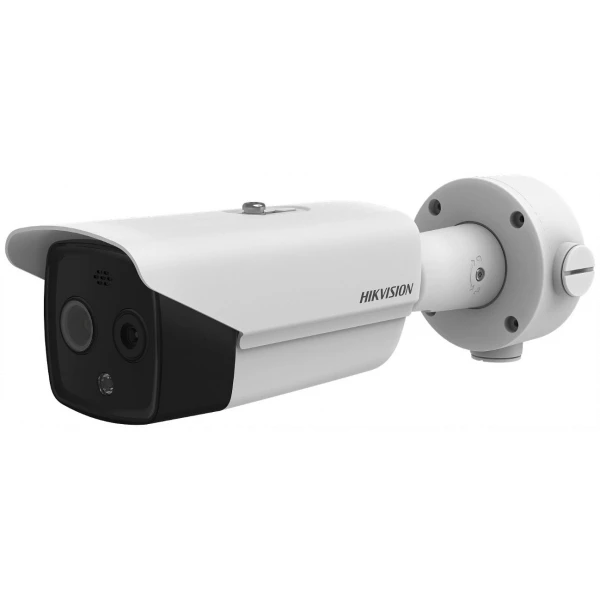

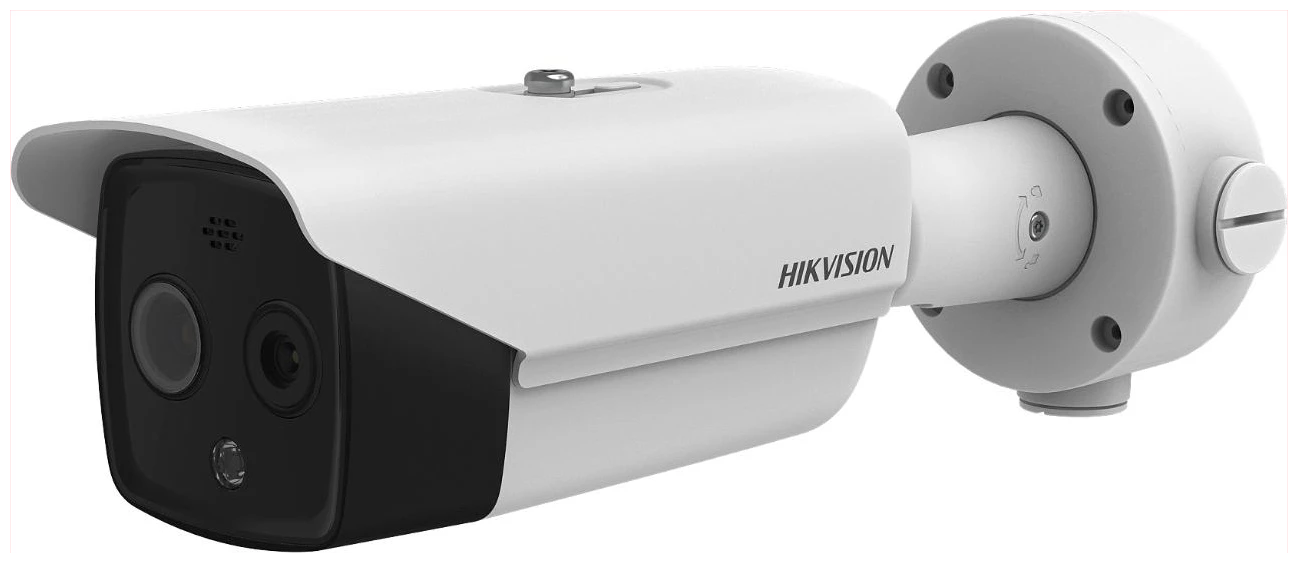

Hikvision termovizorinė kamera DS-2TD2617-6/QA karščiavimui aptikti

932,34

Liko 10

Sandėlyje liko tik: 10 vnt.
DAUGIAU INFORMACIJOS TEL.: +370 700 30164
  • Termovizorinė Bi-spectrum IP Bullet kamera
  • 7mm objektyvas
  • 160*120 raiška
  • Palaiko Micro SD/SDHC/SDXC kortelę (iki 256GB)
  • Vaizdo apdorojimo technologija: linijinis, histograma, savaime prisitaikantis terminis AGC režimas, DDE, 3D DNR
  • IP66
  • Termovizorio modulis
  • SensoriusVanadium Oxide Uncooled Focal Plane Arrays
  • Rezoliucija160 × 120
  • Taškinis žingsnis17 μm
  • Spektrinis diapazonas8 μm to 14 μm
  • NETD< 40 mK (@ 25 °C, F# = 1.1)
  • FOV6.2 mm
  • IFOV2.74 mrad
  • FOV25.0° × 18.7° (H × V)
  • Minimali fokusavimo distancija0.6 m
  • DiafragamaF1.1
  • Skaitmeninis priartinimas× 2, × 4
  • Optinis modulis
  • Sensorius1/2.7″ Progressive Scan CMOS
  • Rezoliucija2688 × 1520
  • Min. apšvietimas0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Užrakto greitis1s to 1/100,000s
  • FOV8 mm
  • FOV39.42° × 22.14° (H × V)
  • Diafragma (diapazonas)F1.6
  • WDR120 dB
  • Vaizdo efektas
  • Tikslinė spalvaYes. Supported in white hot and black hot mode.
  • Apšvietimas
  • IR distancijaUp to 40 m
  • IR intensyvumas ir kampasAutomatically adjusted
  • Garsinis ir vaizdinis signalas
  • Baltos šviesos diapazonasUp to 40 m
  • Vaizdinė signalizacijaYes. White light alarm with adjustable flashing frequencies
  • Garso signalizacija

    Yes, for two types of audible alarm (VCA and Temperature Exception)

    2 preset voice alerts (one for each)

    6 importable user-defined voice alerts (6 options shared in the two types)

  • Išmanioji funkcija
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperatūros matavimas3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperatūros diapazonas – 20 °C to 150 °C (- 4 °F to 302 °F)
  • Temperatūros tikslumas± 8 °C (± 14.4 °F)
  • Vaizdas ir garsas
  • Pagrindinis srautas

    Thermal:

    25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

    Optical:

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-stream

    Thermal:

    25 fps (704 × 576, 352 × 288, 320 × 240)

    Optical:

    50 Hz: 25 fps (704 × 576, 352 × 288)

    60 Hz: 30 fps (704 × 480, 352 × 240)

  • Vaizdo suspaudimas

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

  • Garso suspaudimasG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Internetas
  • ProtokolaiIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Vidinė atmintisMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
  • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SaugumasUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • KlientasiVMS-4200, Hik-Connect
  • Naršyklė

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0 +, Firefox 52.0 +

  • Sąsaja
  • Signalizacijos įvestis2, alarm input (0-5 VDC)
  • Signalizacijos išvestis2, alarm output (alarm response actions configurable)
  • Alarm Actionrecording/Relay output/Smart capture/FTP upload/Email linkage
  • Garso įvestis

    1, 3.5 mm Mic in/Line in interface

    Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Garso išvestisLinear level, impedance: 600 Ω
  • Bendravimo sąsaja

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface (half duplex)

  • Analoginė išvestis1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • Pagrindinis
  • Tinklo naršyklės kalba 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Maitinimas

    12 VDC ± 25%, φ 5.5 mm coaxial power plug

    PoE (802.3af, class 3)

  • Energijos sunaudojimas

    12 VDC ± 25%: 0.5 A, Max 6 W

    PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

  • Darbinė temperatūra / drėgmė

    Temperature: -40°C to 65°C (-40°F to 149°F)

    Humidity: 95% or less

  • Apsaugos lygis

    IP66 Standard

    TVS 6000V lightning protection, surge protection, voltage transient protection

  • Dydis358.3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.35″)
  • Approx. 1.76 kg (3.88 lb)

Papildoma informacija

Svoris 1,85 kg
