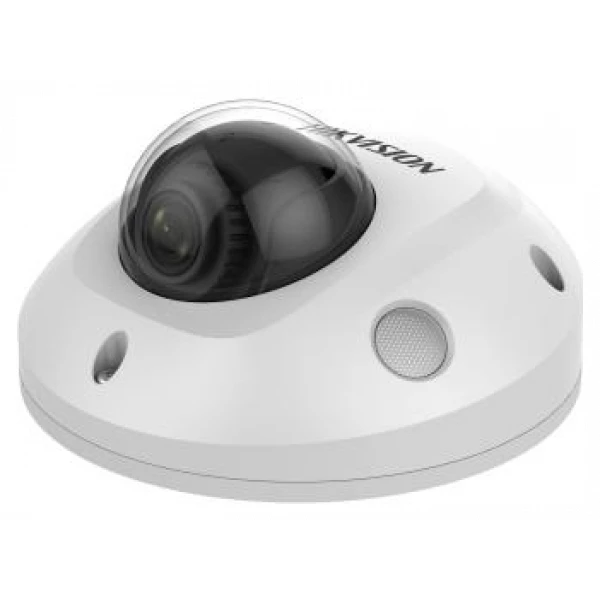

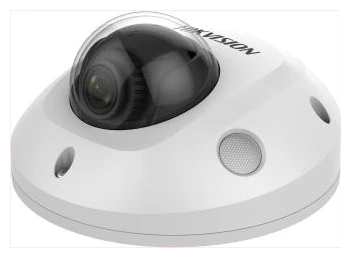

Hikvision DS-2XM6756G0-IDS F2.0

410,87

Liko 10

Sandėlyje liko tik: 10 vnt.
DAUGIAU INFORMACIJOS TEL.: +370 700 30164
  • 5MP mini Dome IP kamera
  • Automobilinė, vidinė
  • 120 dB WDR
  • H.265/H.264/MJPEG
  • IR apšvietimas iki 30m
  • Vieta SD kortelei iki 128GB
  • IP67
  • IK10
  • Kamera
  • Sensorius1/2.9″ Progressive Scan CMOS
  • Maks. rezoliucija3072 × 2048
  • Min. apšvietimasColor: 0.018 Lux @ (F1.6, AGC ON)
  • Užrakto greitis1/3 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Kampo keitimasPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Lęšis
  • Lęšio tipasFixed lens, 2.0/2.8/4/6/8 mm
  • Focal Length & FOV

    2 mm, horizontal FOV 119.4°, vertical FOV 81.9°, diagonal FOV 142.5°

    2.8 mm, horizontal FOV 97.5°, vertical FOV 63.6°, diagonal FOV 119.9°

    4 mm, horizontal FOV 73°, vertical FOV 47.8°, diagonal FOV 90.2°

    6 mm, horizontal FOV 50.1°, vertical FOV 33.2°, diagonal FOV 61°

    8 mm, horizontal FOV 36.4°, vertical FOV 23.9°, diagonal FOV 44.2°

  • Lęšio montavimasM12
  • Diafragama

    2 mm, F2.25;

    2.8/4/6 mm, F2.0;

    8 mm, F1.6

  • Vaizdas
  • Pagrindinis srautas

    50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • Antrinis srautas

    50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

  • Trečias srautas

    50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

    60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

  • Vaizdo suspaudimas

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Vaizdo bitų greitis32 Kbps to 16 Mbps
  • H.264 tipasMain Profile/High Profile
  • H.265 tipasMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub stream
  • Garsas
  • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Garso bitų greitis64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8Kbps-320Kbps(MP3)
  • Garso atrankos dažnis8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Pašalinių garsų šalinimasYes
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • Vidinė atmintis

    microSD/SDHC/SDXC card (up to 128 GB), local storage and NAS (NFS,SMB/CIFS), ANR

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • KlientasiVMS-4200, Hik-Connect, Hik-Central
  • Naršyklė

    Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11

    Plug-in free live view: Chrome 45+, Mozilla Firefox52+

  • Nuotrauka
  • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Diena/Naktis režimasDay/Night/Auto/Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Nuotraukų pagražinimasBLC, HLC, 3D DNR
  • Sąsaja
  • Interneto sąsaja1 RJ45 10M/100M Ethernet port
  • Vidinė atmintisBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Įmontuotas mikrofonas1 built-in mic, mono sound
  • Signalizacija1 input, 1 output (12 VDC, 30 mA)
  • Perkrovimo mygtukasYes
  • Funkcijos
  • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Išmaniosios funkcijos

    Line crossing detection, up to 1 line configurable

    Intrusion detection, up to 1 region configurable

    Unattended baggage detection, up to 1 region configurable

    Object removal detection, up to 1 region configurable

    Face detection: detects faces and upload images

  • SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Pagrindinis
  • Sistemos parametrai

    -IDS:24 VDC is recommended, support 8 to 36 VDC, 0.3 A, max. 7.5 W, Φ 5.5 mm coaxial power plug

    -IS/ND: PoE: 802.3af, Class 3, 36 V to 57 V, 0.30 A to 0.20 A, max: 7.5W

    -IDM: 24 VDC is recommended, support 8 to 36 VDC, 0.3 A, max. 7.5 W, two-core molex

    -IM/ND: PoE: 802.3af, Class 3, 36V to 57V, 0.30 A to 0.20 A, max: 7.5W

  • DydisØ110 mm × 57.4 mm (4.3″ × 2.26″), with base: Ø110 mm × 69.4 mm (4.3″ × 2.7″)
  • Pakuotės dydis252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • SvorisApprox. 460 g (1 lb.)
  • Svoris su įpakavimuApprox. 900 g (2 lb.)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • Pagrindinės funkcijosAnti-flicker, 3 streams, heartbeat, mirror, privacy mask
  • Patvirtinimai
  • ApsaugaIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)

Papildoma informacija

Svoris 0,642 kg
Gamintojas
