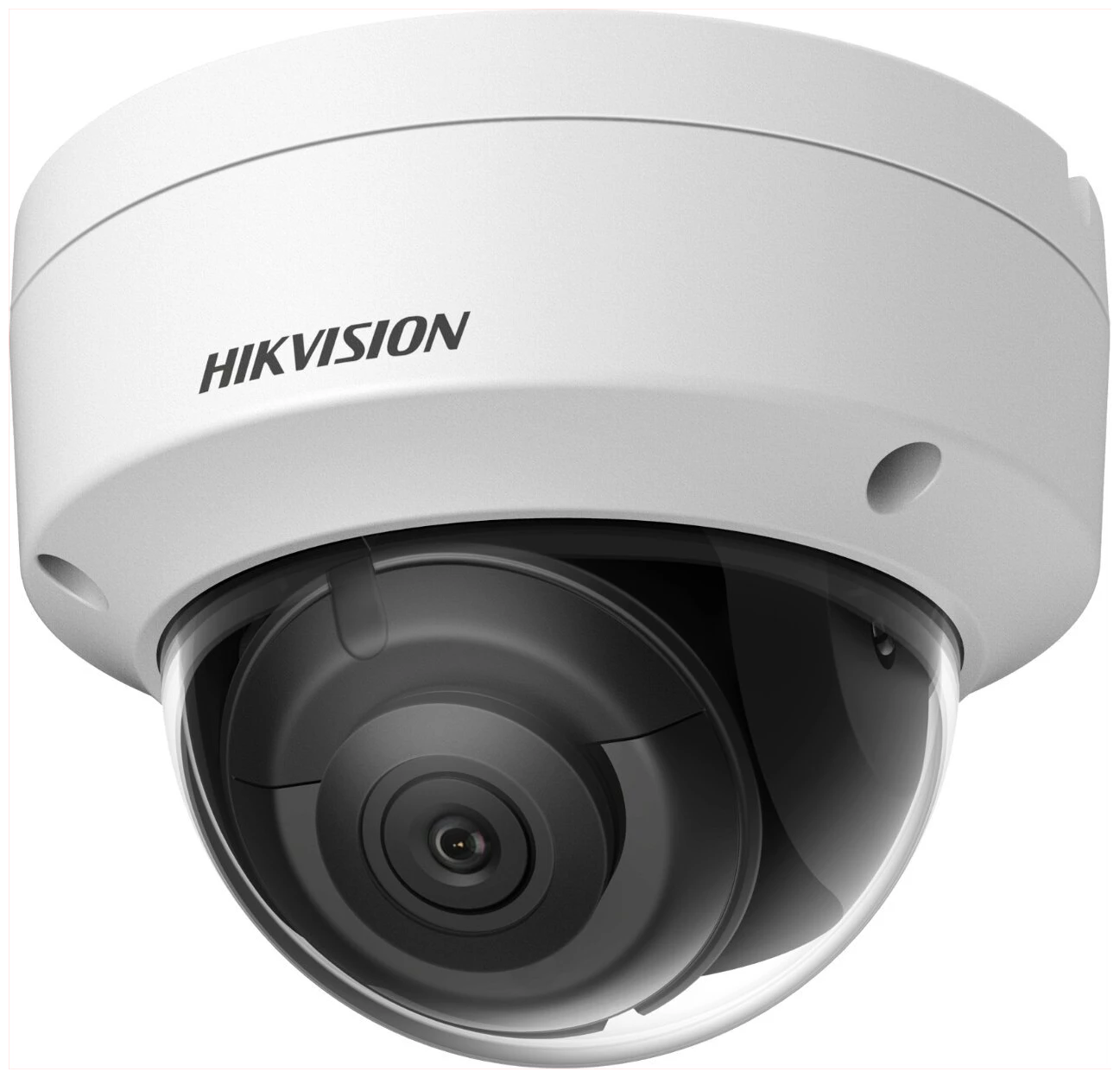

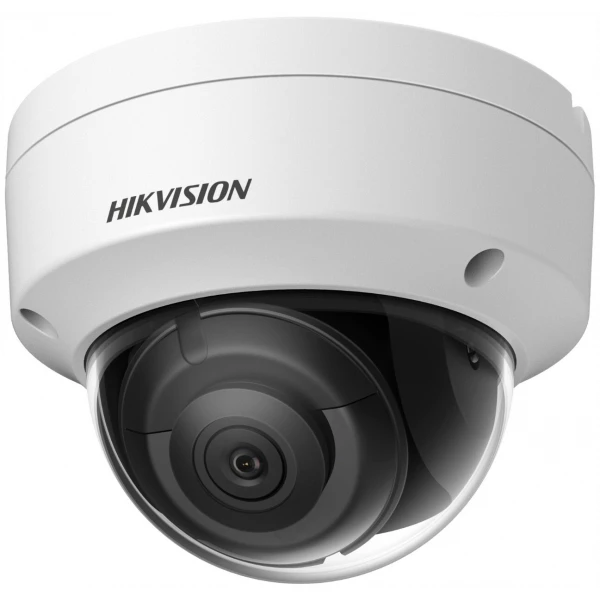

Hikvision dome DS-2CD2183G2-IS F2.8 (balta, 8 MP, 30 m. IR, AcuSense)

254,48

Liko 20

Sandėlyje liko tik: 20 vnt.
DAUGIAU INFORMACIJOS TEL.: +370 700 30164
  • MP (MegaPixel): 8 MP
  • Objektyvas: 2.8 mm, horizontalus FOV: 107°
  • Technologija: AcuSense
  • Integruotas mikrofonas: Ne, yra mikrofono įvestis
  • Naktinis pašvietimas: 30 m. IR
  • Vieta microSD talpai: Taip, 512GB
  • Darbo sąlygos: -30 °C iki 60 °C
  • Saugos lygis: IP67
  • Vaizdo suspaudimas: H.265+
  • WiFi: Ne
  • Laikiklis/bazė (papildomai): DS-1280ZJ-DM18
  • Lauko/vidaus: Lauko
  • Kamera
  • Sensorius1/2.8″ Progressive Scan CMOS
  • Maks. rezoliucija3840 × 2160
  • Min. apšvietimasColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Užrakto greitis1/3 s to 1/100,000 s
  • Diena & NaktisIR cut filter
  • Kampo keitimasPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lęšis
  • Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
  • FOV

    2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

    4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

  • Lęšio montavimasM12
  • Rainelės tipasFixed
  • DiafragamaF1.6
  • DORI
  • DORI

    2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

    4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

  • Apšvietimas
  • Papildomo apšviešimo tipasIR
  • Papildomo apšvietimo diapazonasUp to 30 m
  • Išmanus papildomas apšvietimasYes
  • IR bangos ilgis850 nm
  • Vaizdas
  • Pagrindinis srautas

    50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Antrinis srautas

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Trečias srautas

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

    *Third stream is supported under certain settings.

  • Vaizdo bitų greitis32 Kbps to 16 Mbps
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR,VBR
  • SVCH.264 and H.265 encoding
  • Vaizdo suspaudimas

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

  • ROI1 fixed region(s) for main stream and sub-stream
  • Garsas
  • Garso tipas-S: Mono sound
  • Garso suspaudimas-S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Garso bitų greitis-S: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Garso atrankos dažnis-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Pašalinių garsų šalinimas-S: Yes
  • Tinklas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • KlientasiVMS-4200,Hik-Connect,Hik-Central
  • Naršyklė

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

    Local service: Chrome 57.0+, Firefox 52.0+

  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaiRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Diena/Naktis režimasDay,Night,Auto,Schedule
  • WDR120 dB
  • SNR≥ 52 dB
  • Nuotraukų pagražinimasBLC,HLC,3D DNR
  • Privatumo kaukė4 programmable polygon privacy masks
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintis

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

  • Perkrovimo mygtukasYes
  • Garsas

    -S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Signalizacija-S: 1 input, 1 output (max. 12 VDC, 30 mA)
  • Funkcijos
  • Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Išmaniosios funkcijosLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Pagrindinis
  • Maitinimas

    12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W

  • MedžiagaAluminum alloy body, bubble: plastic
  • Dydis

    Ø110.8 mm × 84.7 mm (Ø4.4 × 3.3″)”

  • Pakuotės dydis134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
  • Approx. 520 g (1.1 lb.)
  • Svoris su įpakavimuApprox. 720 g (1.6 lb.)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba

    33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • Pagrindinės funkcijosHeartbeat,anti-flicker,password reset via email,pixel counter
  • Patvirtinimai
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Aplinkosauga

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ApsaugaIP67: IEC 60529-2013;IK10: IEC 62262:2002
  • Saugumas

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

Papildoma informacija

Svoris 0,72 kg
Gamintojas
