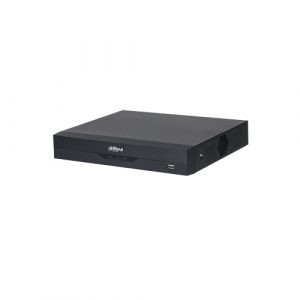

XVR5104HS-I2, Įrašymo įrenginys 4Ch, 1HDD, 5MP, WizSense
137,94 Į krepšelį

XVR5104HS-I2, Įrašymo įrenginys 4Ch, 1HDD, 5MP, WizSense

137,94

Išankstinis užsakymas

DAUGIAU INFORMACIJOS TEL.: +370 700 30164

Perimeter Protection
Performance: 2 channels, 10 IVS for each channel
Object classification: Human/Vehicle secondary recognition for tripwire and intrusion
AI Search: Search by target classification (Human, Vehicle)
Face Recognition
Performance: Max 8 face pictures/sec processing / 1 channel video stream face recognition, only support analog camera
Stranger Mode: Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
AI Search: Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management: Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Performance: 4 channels
AI Search: Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input: 4 channels, BNC
HDCVI Camera Input: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
IP Camera Input: 4+2 channels, each channel up to 6MP
Audio In/Out: 1/1, RCA
Two-way Talk: Reuse audio in/out, RCA
Recording Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate: 32 Kbps–6144 Kbps Per Channel
Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression: AAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate: 8 KHz, 16 bit Per Channel
Audio Bit Rate: 64 Kbps Per Channel
Display Interface: 1 HDMI ,1 VGA Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Interface: 1 RJ-45 Port (100 MB)
Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access: 128 users
Interoperability: ONVIF 16.12, CGI Conformant
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input: N/A
Relay Output: N/A
Playback: 1/4
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Internal HDD: 1 SATA Port, up to 6TB capacity
eSATA: N/A
USB: 2 USB Ports (USB 2.0)
RS485: 1 Port, for PTZ Control
RS232: N/A
Power Supply: DC 12V/1.5A
Power Consumption: (Without HDD) <4W
Dimensions: Compact 1U, 260 mm × 238 mm × 48 mm
Net Weight: (without HDD): 1.0 kg
Gross Weight: 1.4 kg
Installation: Desktop installation
Operating Conditions: -10°C to +55°C (+14°F to +131°F), 0–90% RH
DAHUA
