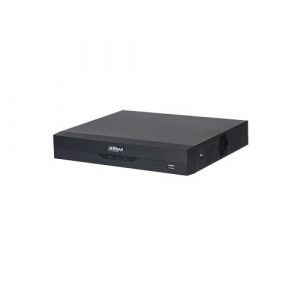

DAHUA NVR4108HS-8P-4KS2, ĮRAŠYMO ĮRENGINYS 8CH, 1HDD, 8MP

DAHUA NVR4108HS-8P-4KS2, ĮRAŠYMO ĮRENGINYS 8CH, 1HDD, 8MP

465

Išankstinis užsakymas

DAUGIAU INFORMACIJOS TEL.: +370 700 30164

Main Processor: Quad-core embedded processor

Operating System: Embedded LINUX

Audio and Video

IP Camera Input: 8/16 Channel

Two-way Talk: 1 Channel Input, 1 Channel Output, RCA

Display Interface:1 HDMI, 1 VGA

Resolution

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity: 2ch@4K(30fps)/8ch@1080P(30fps)

OSD: Camera title, Time, Camera lock, Motion detection, Recording

Compression: Smart H.265+/H.265/Smart H.264+/H.264

Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate: 80Mbps

Bit Rate: 16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Trigger Events

Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input: N/A

Alarm output: N/A

Backup Mode: USB Device/Network

Interface: 1 RJ-45 Port (10/100Mbps)

Ethernet Port: 1 Independent 100Mbps Ethernet Port

PoE: 8 Ports(IEEE802.3at/af)

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 2.4, SDK, CGI

Internal HDD: 1 SATA III Port, Up to 6 TB capacity for each HDD

HDD Mode: Single

USB: 2 ports(1 Rear USB2.0, 1 Front USB2.0)

RS232: N/A

RS485: N/A

Power Supply: DC48V/2A

NVR: <8.3W (Without HDD)

PoE: Max 25.5w for single port, 80w in total

Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Dimensions: Compact 1U, 260mm×224.9mm×47.6mm

Net Weight: 0.8kg (1.76 lb) (without HDD)

Gross Weight: 1.6kg(3.53 lb)(without HDD)

DAHUA
